256 Channel NVR
New

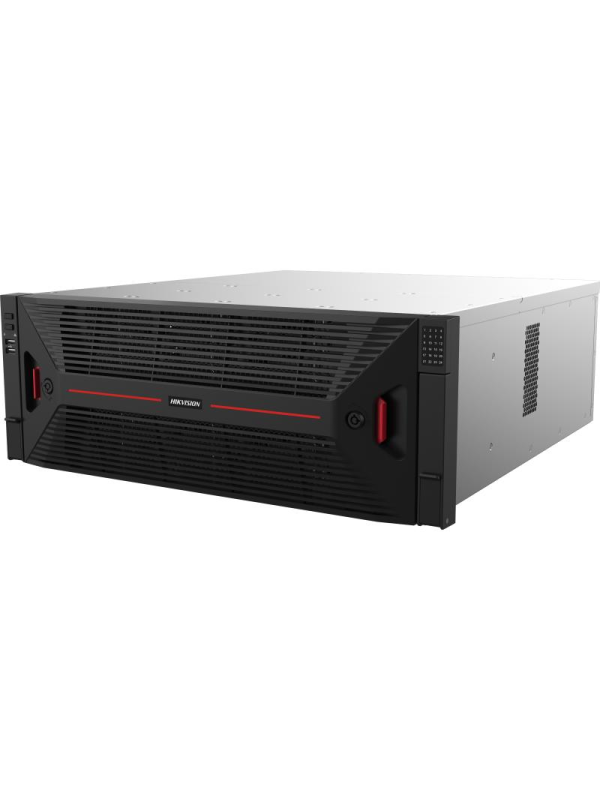

Hikvision 256 Channel NVR
- 256 channel IP camera input
- 48 channel @1080p decoding capacity
- 1.25Gbps incoming bandwidth, 1.25Gbps outgoing bandwidth
- People counting camera, ANPR camera and fisheye camera, special cameras
- RAID 0, 1, 5, 6, 10 and N+1 hot spare
- 8 channel IP speaker can be connected
DS-96256NI-H24R| Video | |
| Number of Channels | 265 channel |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Network | |
| Band Width | Incoming Bandwidth 1280 Mbps, Outgoing Bandwidth 1280 Mbps |
| Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Image | |
| Synchronized Playback | 16 channel |
| Hard Disk | |
| SATA | 24 SATA interfaces supporting hot-plug |
| Interface Unit | |
| Audio Compression Format | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Alarm Input/ Output | 16/8 |
| General Features | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
| Power Consumption | ≤ 75 W |
| Operating Temperature | 0 °C to + 50 °C (32 °F to 122 °F) |
| Dimension | 447 × 489 × 173 mm (17.6" × 19.3" × 6.8") |
| Weight | ≤25 kg |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Network Interface | 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface |
